HighTex BAS-311G Heavy duty programmable electronic
pattern sewing machine with cylinder bed and shuttle hook
for high sewing quality

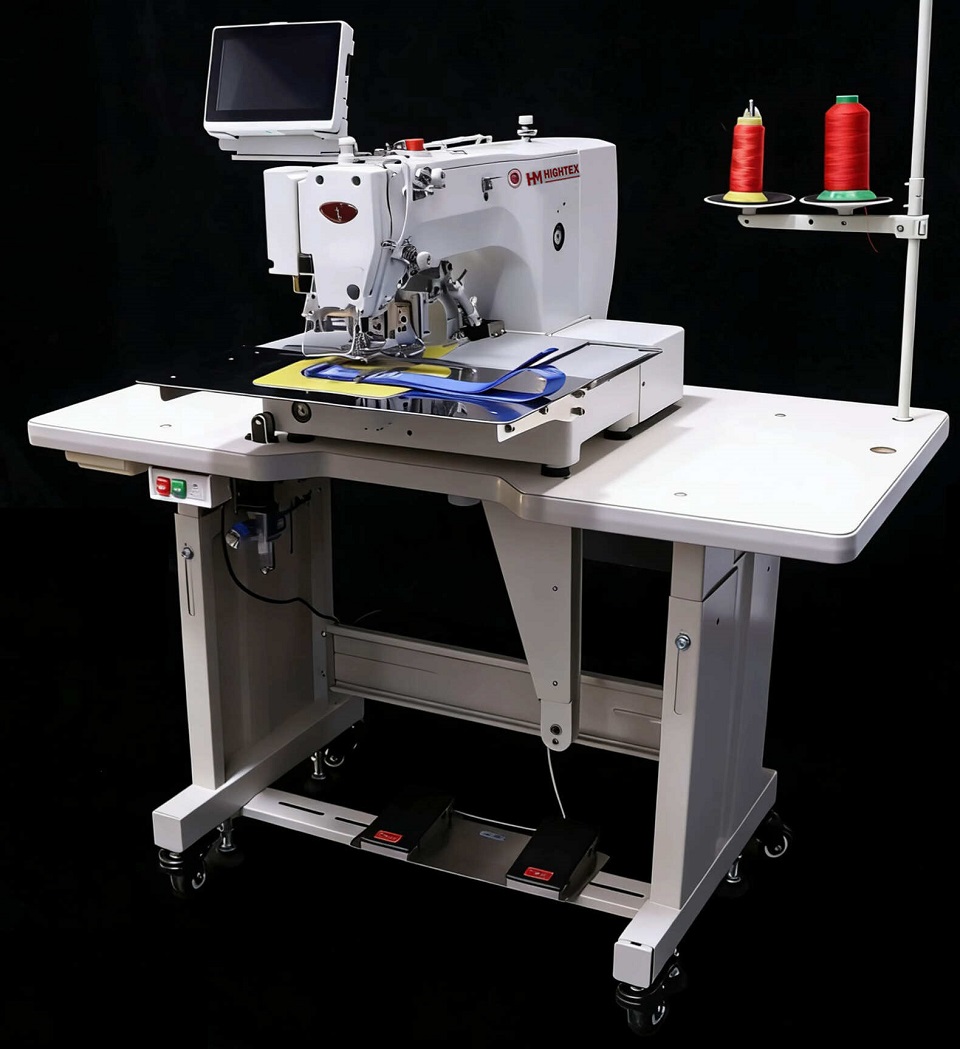

BAS-311G Programmable electronic pattern sewer
BAS-311G Leather electronic pattern sewing machine

BAS-311G best programmable pattern sewing machine for leather

BAS-326G Programmable Electronic Pattern Sewer

Your advantages:

1. The machine provide high quality sewing with pinpoint accuracy, ideal for high end leather goods and car interior;

2. The new auto thread trimming system can cut thread very short that eliminate manual thread trimming operations to improve productivity;

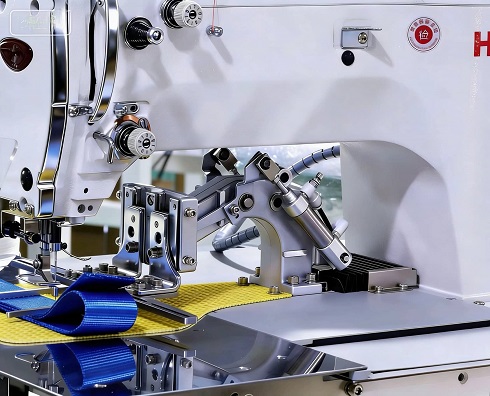

3. Presser foot control mechanism always provides uniform thread tightness (when thickness of material has been changed, the height of stepping presser foot is changed accordingly without tools required);

4. Smooth and beautiful stitches can be produced with a minimum resolution of 0.05mm;

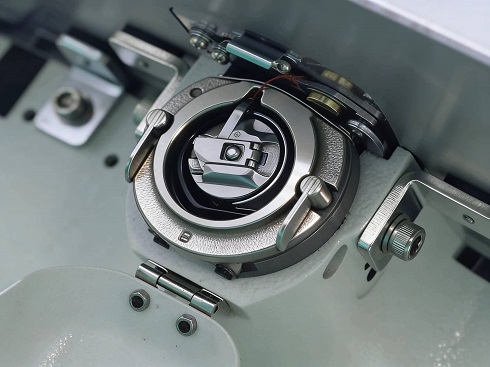

5. Large shuttle hook with 2 times bobbin capacity helps reduce the frequency of bobbin thread changing when sewing with thick thread;

6. Economical operation with low power consumption. The direct drive mechanism greatly reduces power transmission losses, and a compact and energy-efficient motor has also been adopted;

7. The original Brother BAS-311G control system is available as option.

Applications:

Functional or decorative stitching for leather goods, jeans and upholstery, for example leather bags, shoes upper, car seats, automotive Interiors (door panels, consoles, dashboards), boat interiors, aircraft interiors, motorcycles, seat belts, safety harness, webbing lanyards, slackline webbing, pet leashes, harnesses & collars, wallet, phone case, card holders, jeans and attaching label.


Specifications:

Max. Sewing Speed:

2700 rpm

Hook Type:

Double-capacity shuttle hook

Sewing Area:

130mmX100mm

Needle System:

DPX17#18

Max. Thread size

Metric #15 (=V207, T-210, 630dx3)

Feed mechanism:

Intermittent feed, pulse motor drive

Bobbin size:

Outside Dia. 25.5mm, Height 10mm

Stitch Length:

0.05 - 12.7 mm

Tariff code (HS code):

8452219000

Work Holder Lift :

32mm

NeedleBar Stroke:

41.2mm

Presser Foot Lift:

20mm

Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

10000 patterns

Pneumatic specifications:

Pneumatic method

Pattern Storage :

Internal & USB

Pattern Input :

Touch screen

Max. Number of Stitches:

20,000 per pattern

Drive Motor:

Limi-Servo (550 Watts)

Air pressure:

0.5 MPa 1.8 l/min

Power:

200-240 Volt 1 or 3 Phase

Thread trimmer system:

Horizontal engagement with fixed knife and movable knife

Lubrication system:

Replenishment with the oil braids from the oil tanks

Package (plywood case):

1230x865x1370MM, G.W:196 KGS
