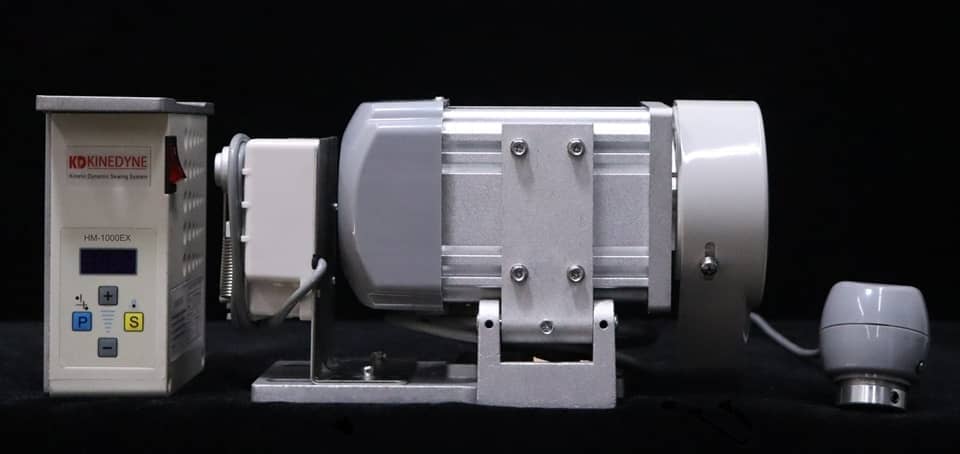

Kinedyne HM-1000EX: 1000W Heavy Duty Sewing Machine Servo Motor | Low Speed 50 RPM High Torque Brushless Motor for Leather, Canvas & Upholstery Precision Stitching

The right servo motor is significantly important to the performance & efficiency of a heavy duty industrial sewing machine, so it is worth spending a little extra to get the best available. A good heavy duty leather sewing machine machine with the wrong motor and control is a bad investment and will cause a lot of frustration and discontent.

For craftsmen sewing thick leather belts, holsters, sheaths, harnesses, saddles, horse tack, or multi-layered automotive and marine upholstery, Kinedyne has long been recognized as the industry gold standard. Unlike cheap alternatives that lose power at low speeds, Kinedyne motors maintain bone-crushing torque with surgical precision—even at a stitch-by-stitch crawl. However, for many leatherworkers, premium Kinedyne models have historically been a significant financial investment... We realize that world-class power shouldn't be financially out of reach. To bridge this gap, we developed the affordable digital servo motor HM-1000EX. This budget-friendly, heavy-duty servo motor retains Kinedyne’s legendary low-speed piercing power. By eliminating non-essential, complex electronic add-ons, we reduced the cost without sacrificing core performance, and pass the savings directly to you. Best of all, this low cost servo motor still integrates flawlessly with your needle positioner. Upgrade to the HM-1000EX today for perfectly smooth, highly predictable power that respects your budget.

The major advantages:

1. Massive Power (1000W / 1.35 HP) & Extra-High Torque (9 Nm)

The Kinedyne HM-1000EX is one of the world’s most powerful energy-saving, "low-speed, high-torque" brushless servo motors. It maintains full power and torque even at low speeds. It delivers an unbeatable needle-piercing force that never stalls. It punches effortlessly through 8+ layers of dense leather, thick webbing, or stacked upholstery. No more stuck stitches, broken needles, or fighting your machine mid-project.

2. Stitch-by-Stitch Precision Control (50 RPM)

Operating smoothly at speeds as low as 50 RPM, this servo motor allows you to execute ultra-fine detail work and handle intricate sections with ease. It delivers perfectly consistent stitching that cheap motors simply cannot match, making your machine far more manageable for beginners.

3. Instant Responsiveness

Experience total control with the ultra-responsive HM-1000EX servo motor. Powered by an advanced optical control system—which far outperforms the cheap Hall-effect sensors found in standard brushless motors—this motor responds to your touch instantly. Press the pedal for a perfectly smooth, gradual start with no sudden jumps in speed. Release it, and the motor halts immediately, functioning like a built-in electronic brake. Unlike conventional motors that suffer from coasting momentum and sew unwanted extra stitches, the HM-1000EX stops exactly when and where you want it to.

4. Incredibly Cost-Effective

We believe that world-class power should never be out of reach. The HM-1000EX is our premier value-leader model, engineered to introduce HighTex’s premium sewing technology to leather artisans and upholstery professionals worldwide at an unbeatable price point.

5. No Speed Reducer Required

Thanks to its extreme low-end torque output, you never need to install an external reduction pulley system. This cuts down your machine setup time, eliminates extra maintenance points, and — most importantly — the total cost of a HM-1000EX is lower than buying a budget motor plus a separate reducer kit.

6. Precision Needle Position Synchronizer

A built-in, high-precision sensor lets you program the needle to stop automatically in the exact "UP" or "DOWN" position every single time. The down position keeps your stitches secure, allowing you to easily pivot fabric, maneuver sharp corners, and turn tight angles without slipping. When you finish a seam, the needle stops in the up position so you can effortlessly remove your fabric and trim the threads.

7. Massive Energy Savings

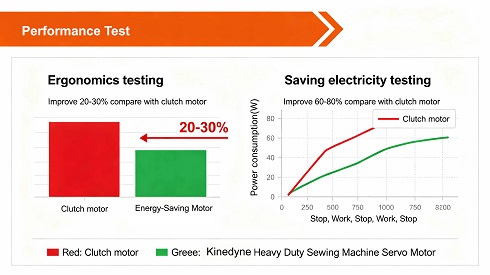

It reduces energy consumption by 60% - 80% compared to standard clutch motors. The electricity savings can often recover the cost of the motor itself within 2 to 3 years.

8. 10-12 Hour Daily Industrial Thermal Management

Unlike hobby-grade motors that overheat after hours of continuous use, the HM-1000EX features a computer-controlled drive board with integrated overheat protection. It actively shields sensitive internal components from heat damage, even running non-stop for full 10–12 hour workdays.

9. Ergonomic 2-Stage Foot Pedal Included

The dedicated two-stage foot pedal lets you tap your heel lightly to lift the presser foot for easy material rotation, and press your heel all the way down to lift both the presser foot and the needle at once — no more awkward hand adjustments mid-sew.

10. Pure Copper Coil + Reinforced Alloy Base for Extreme Durability

Wound with 100% pure copper coils for superior heat resistance and optimal current transfer, mounted on a heavy-duty reinforced alloy base that never bends even under peak high-torque loads. This rugged, zero-maintenance construction delivers years of reliable performance in the harshest busy workshop environments.

11. Near-Silent Operation

Runs almost completely quiet compared to noisy old clutch motors and legacy servo motors, making long sewing sessions far more comfortable for you and everyone in your workshop.

12. Full Dynamic Sewing System Compatibility

Designed for ultimate versatility, this motor adapts seamlessly from slow, high-torque precision to high-speed operations. It is compatible with any industrial sewing machine requiring precise, low-speed control, including the Cowboy 797 high speed walking foot upholstery machine and the Cowboy CB4500 extra-heavy-duty leather sewing machine.

Primary Industry Applications:

Saddlery & Leather Crafts: horse saddles, harnesses, gun holsters, knife sheaths, handbags, horse tack, bridles, hand bags etc.

Heavy Leather Goods: Manufacturing leather bags, wallets, belts, shoes and boots.

Upholstery Industry: leather sofas and armchairs, office chair, car seat covers,  automotive Interiors (door panels, consoles, dashboards), boat interiors, aircraft interiors and motorcycles;

Industrial & Safety Webbing: Stitching car seat belts, heavy-duty lifting slings, military tactical gear, parachutes, and cargo nets.

Heavy Technical Textiles: Sewn goods made from canvas, sails, tents, truck tarpaulins, and multi-layered denim.

Compatible Heavy-Duty Sewing Machines:

This motor is the industry gold standard for upgrading or driving heavy-duty walking foot and long-arm machines that require low-speed precision control, including:
Juki: TSC-441, TNU-243, LG-158, LU-1508N, DNU-1541
Durkopp Adler: 204-370, 205-370, 967, 969, 267, 269
Seiko: SLH-2B, CH-8B, TH-8B, JW-28BL-30
Cowboy / HighTex: CB4500, CB3200, 733CS, 7360
