204-102 Heavy duty double needle Moccasin stitching
machine (= mocca sewing machine) with large Barrel
shuttle hook for shoes, bags and leather goods

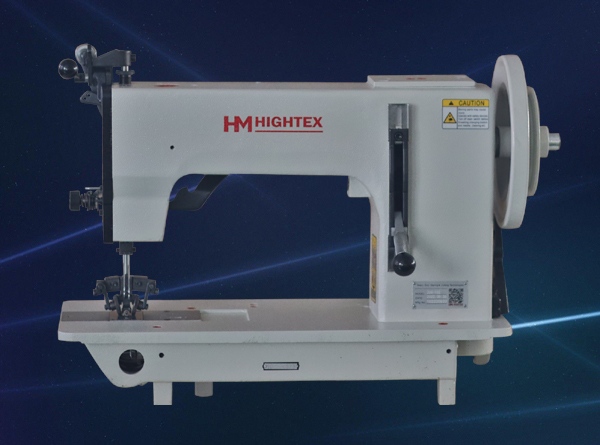

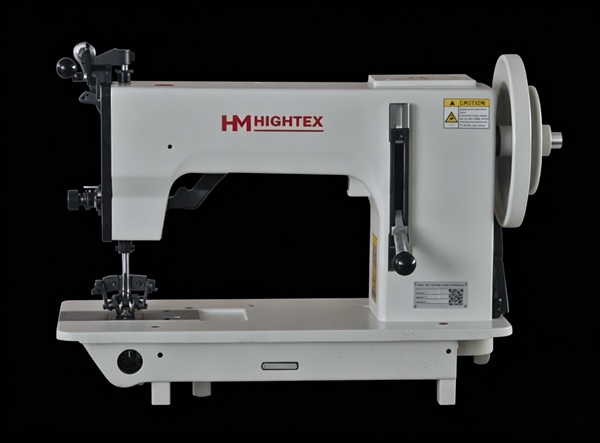

204-102 Double needle Mocca Sewing Machine
Adler 205-370 stitching machine
204-102 Moccasin Stitching Machine

Your advantages:

1. Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads;

2. The roller foot allows for detailed edge sewing;

3. The presser foot has an extra high lift and can go up to 15mm, allowing for a large range of extra heavy weight material or bulky items to be used;

4. The special extra large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);

5. According to the real demand of sewn products, it could apply normal moccasin stitch or cord-insert moccasin stitch;

6. Standard supply with HM-750T strong, slient & reliable servo motor and needle positioner synchronizer that you can stop needle in the down position and up position.


This is the basic and economic moccasin stitching machine for double needle moccasin sewing of shoe uppers. It is also very good machine for, bags, upholstery and horse saddle.


Max. Sewing Speed:

800 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:


Needle bar stroke:

56 mm

Needle System:

794 needle, #160-#280

Max. Thread size

8/3 (=V415, T-400) or 1.4mm Braided yarn

Stitch Length:


Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

96 mm

Presser foot alternating:


Working space:

320mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

770x620x520MM, 85KGS

Tariff code (HS code):
