204-102SL Low cost programmable decorative stitching
machine suitable for thick thread decorative seams and
ornamental seams on leather sofas, armchairs, loveseat
seat cushions, leather bags, shoes and leather goods

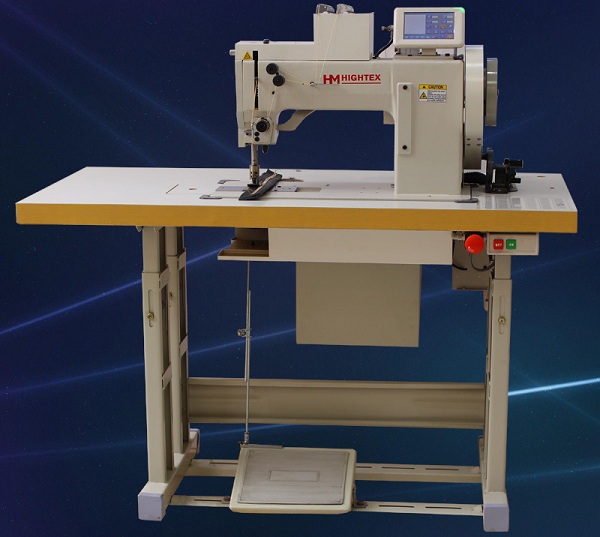

204-102SL programmable sofa decorative stitching machine
ornamental stitching machine

204-102SL programmable sofa ornamental  stitching machine

204-102SL programmable leather decorative  stitching machine

Your advantages:

1. Long sewing cycles by Barrel shuttle hook with large bobbin capacity, even sewing with extremely thick thread;

2. The rotating needle bar technology is to personalize your upholstered furniture with 32 standard decorative stitch patterns;

3. Change ornamental stitching patterns by digital input, very easy to operate;

4. The powerful top and bottom feed mechanism to produce a positive feeding motion for various padded & non padded materials like leather;

5. The thread take up lever mechanism is better for soft upholstery leather;

6. Up to 12 mm long stitches for decorative topstitching seams;

7. It is the lowest cost programmable leather decorative stitching machine in today market.

Optional sewing equipment:

(1) Automatic presser foot lift; (2)Pneumatic center seam guide; (3)Automatic needle UP/DOWN position; (4)Tape-reel bracket of front tape guide; (5) Horizontal thread stand (for braided thread) (6) Automatic thread tension release (7) LED sewing light


For decorative seams (topstitching) and ornamental stitches luxurious leather sofas, armchair, loveseats and other upholstered furniture, car seat covers, leather bags, shoes, suitcases, automotive upholstery, marine upholstery, aerospace upholstery and other high-end leather goods.


Max. Sewing Speed:

400 rpm

Hook Type:

Large Barrel Shuttle Hook

Feeding system:

Drop feed

Pattern changing method:

Digital input

Needle System:

794 (DYx 3) #230 to #280

Max. Thread size

8/3 (=V415, T-400) or 1mm Braided yarn

Max. Sewing thickness:

10mm thick upholstery leather and upholstery fabrics

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Max. stitch length:


Working area:


Needle gauge set:

Standard 10mm (8mm, 12mm as options)

Quantity of sewing patterns:

100 single needle + 100 double needles

Presser Foot Lift:


Thread taking-up:

By Thread Take-up Lever Cam

Air pressure:

0.6 MPa


750W, 200-240 Servo motor

Package (plywood case):

1240X1380X635MM, G.W: 160KGS

Tariff code (HS code):
