204-76-370 Long arm upholstery sewing machine with
Barrel shuttle hook for thick thread decorative stitches
on sofa & armchair, covers, marine & auto upholstery

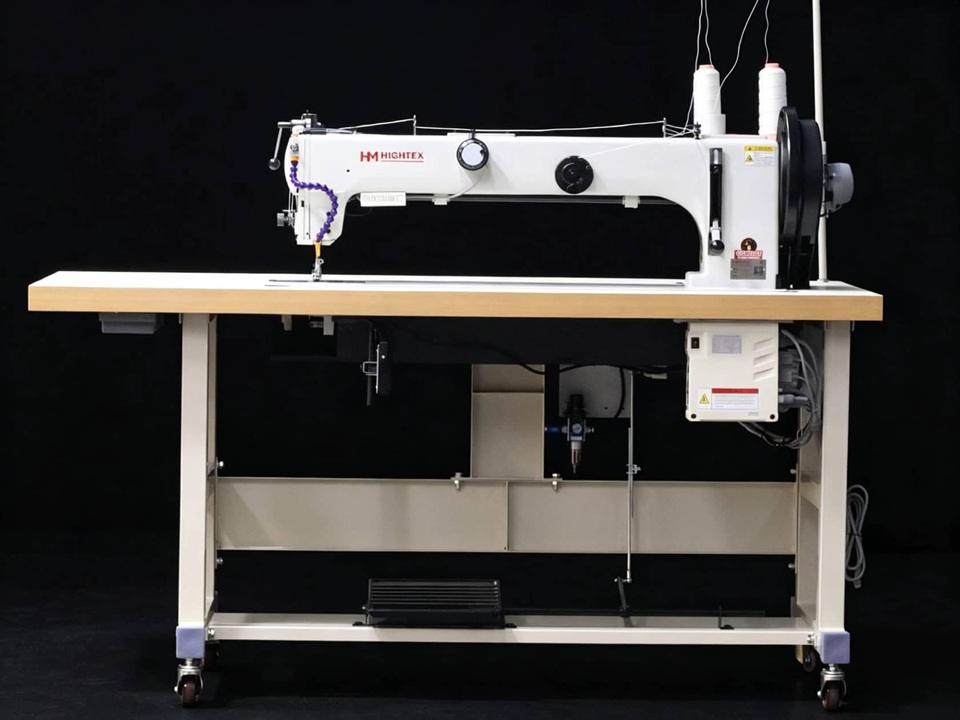

204-73-370 long arm upholstery sewing machine for upholstery
Adler 205-370 stitching machine

Decorative sewing machine

Your advantages:

1. This heavy duty industrial sewing machine arm has been extended to give 760mm clearance, which is very useful when sewing larger panel, for example: lounge sofa, car seat, marine upholstery etc.;

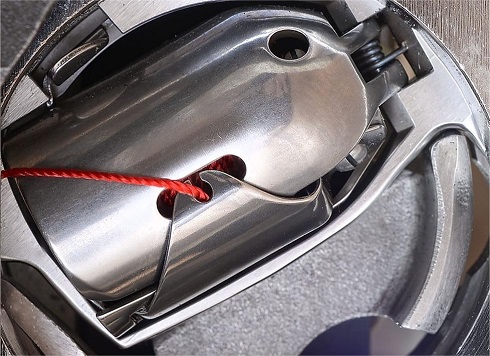

2. It is fitted with an extra large shuttle hook assembly (204 type) for use with heavy weight & extra heavy weight materials and extra thick threads;

3. Constant stitch lengths due to optimized triple feed mechanism, even in case of extremely thick materials;

4. Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads up to Nm 8/3 or 1.4mm braided thread;

5. The presser foot has an ultra high lift of up to 20mm, allowing for a large range of extra heavy weight material or bulky items to be used;

6. The sewing foot stroke up to 10 mm allows the safe climbing over differently high material plies;

7. Pneumatic sewing foot lift, pneumatic reverse stitch (back-stitch) and automatic needle UP/DOWN positioning as standard equipment;

8. Up to 14 mm long stitches for assembly and decorative seams;

9. This long arm industrial sewing machine with a cheaper price than others on the market offers average European quality standards.


For functional and ornamental stitching luxurious leather sofas, fabric sofas, armchair, couch lounge and other upholstered furniture, car seat covers, automotive upholstery, marine upholstery, aerospace upholstery, tents, parachutes, sails, tarps, awnings, truck covers, boat covers, sleeping bags, sheets, military & tactical gear, shade structures and heavy bulky products.


Max. Sewing Speed:

700 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:


Needle bar stroke:

56 mm

Needle System:

794 needle, #160-#280

Max. Thread size

8/3 (=V415, T-400) or 1.4mm Braided yarn

Stitch Length:


Bobbin size:

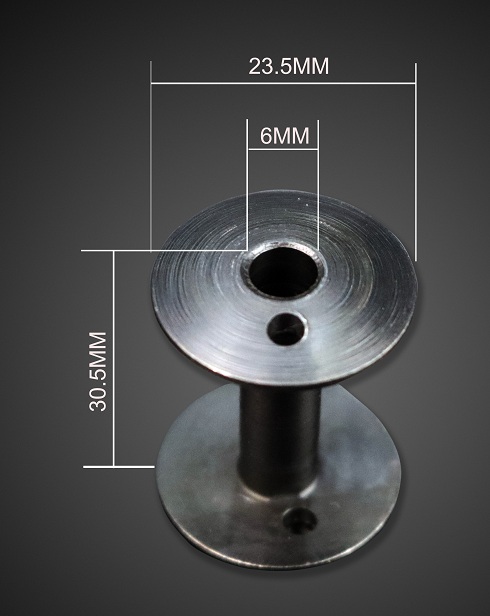

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

96 mm

Presser foot alternating:


Working space:

760mm (length) x185mm( High)

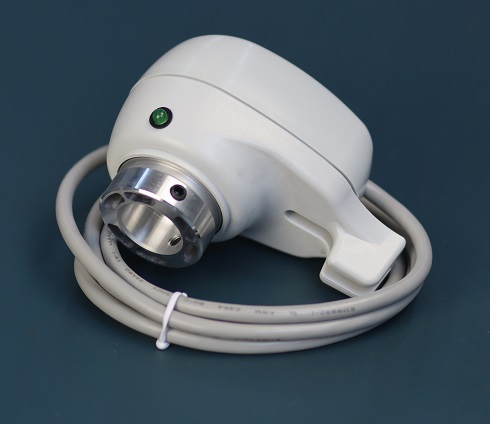

Recommended motor:

Minimum 0.75 kW

Packing size:

1630X750X1350MM, 360KGS

Tariff code (HS code):
