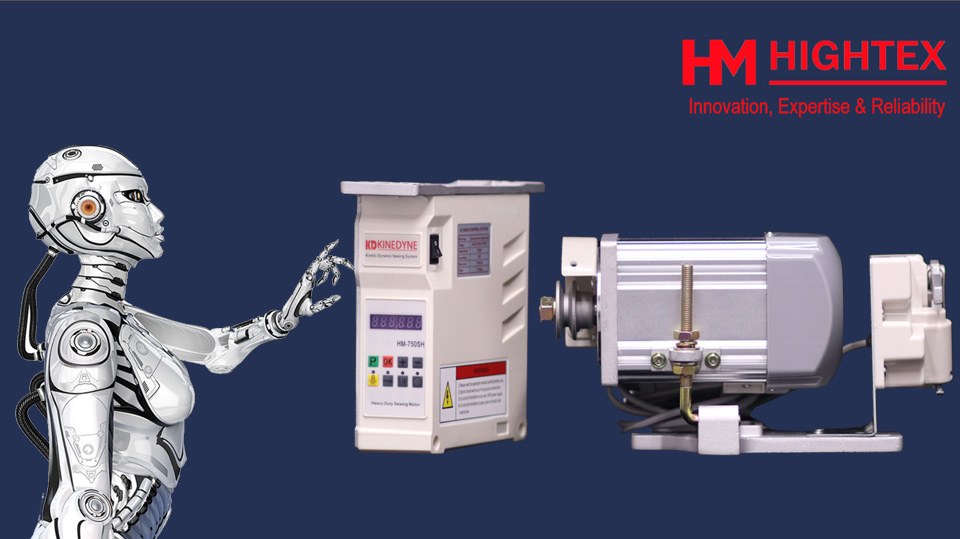

HM-750SH | 750W High Torque, Low Speed Servo Motor for Extra Heavy-Duty Leather Sewing Machine | Stitch-by-Stitch Precision Control
The primary difference between the Kinedyne HM-750SL and HM-750SH servo motors lies in their thermal management capabilities. While both models share identical base performance metrics, they are engineered for different levels of production intensity and machine applications.
The HM-750SL is optimized for medium-weight industrial sewing machines (such as the Juki DNU-1541 and LS-1341), as well as hobbyists and small production shops. However, operating it for 5 to 8 hours a day, or pairing it with extra-heavy-duty leather sewing machines (like the Cowboy CB4500 or Dürkopp Adler 205-370), risks excessive heat build-up that can degrade internal electronic components.
Conversely, the HM-750SH features an advanced overheat protection controller. This mechanism enables continuous, ultra-low-speed operation without thermal build-up, making it ideal for any extra-heavy-duty industrial sewing machine or large-scale manufacturing environment requiring 10 to 12 hours of continuous multi-shift operation daily.
The major advantages:
1. Awesome 750W Brushless Power (1 HP)
This exceptionally powerful servo motor delivers a robust 750-watt output, equivalent to approximately 1 horsepower (HP) of pure performance. It effortlessly drives any extra heavy duty industrial sewing machine without strain.
2. High Torque at Low Speeds
The motor generates an impressive 8.6 Nm of torque even at its lowest speed, delivering immense needle-penetration force. This allows operators to sew through multiple layers of heavy leather and dense materials seamlessly without stalling.
3. Stitch-by-Stitch Precision
With a minimum speed of just 50 RPM, the motor delivers complete control over the sewing process, allowing operators to execute precise, stitch-by-stitch detailed work with ease. This ultra-slow capability is also ideal for beginners. Utilizing the HM-750SH high-torque motor for heavy, thick sewing applications completely eliminates the need for an obsolete external speed reducer.
4. Instant Responsiveness
Gain total control over your machine with the ultra-responsive HM-750SH servo motor. While standard brushless motors rely on cheap Hall-effect sensors, the HM-750SH utilizes a premium, state-of-the-art optical control system for immediate, zero-lag performance that responds to your touch instantly. Pressing the pedal delivers a perfectly smooth, gradual start with no sudden jumps in speed. The moment you release it, the motor halts immediately, functioning as a highly effective built-in electronic brake. Unlike conventional motors that suffer from coasting momentum and sew unwanted extra 2-3 stitches, the HM-750SH stops dead on your exact target.
5. Smart Automation

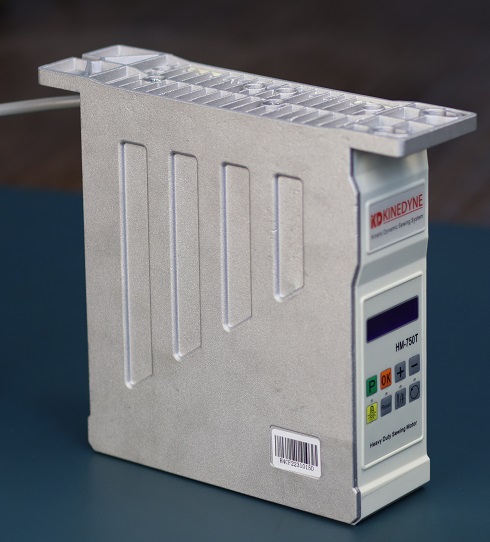

This motor is equipped with specialized expansion ports and built-in firmware to seamlessly power an automatic presser foot lifter, a needle cooler, and an automatic reverse function. Developed in collaboration with our experienced global dealer network, we integrated a suite of intuitive user controls—including a Soft-Start function, an electronic Jog-Dial, and a Half-Stitch button. Together, these smart advancements maximize machine control, enabling operators to achieve flawless, precise stitching every time.
6. Massive Energy Savings
This motor reduces energy consumption by 60% to 80% compared to standard clutch motors. For most operations, these substantial electricity savings allow the motor to completely pay for itself within 2 to 3 years.
7. Precision Needle Positioner Synchronization

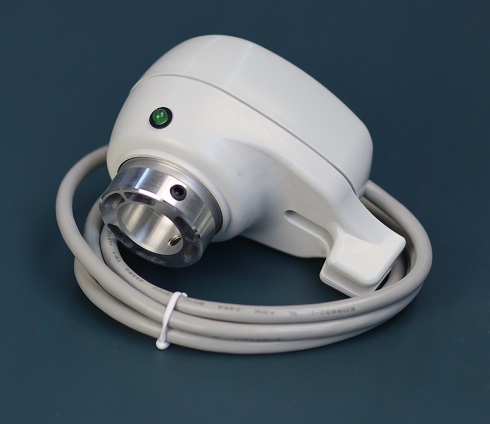

The integrated Kinedyne needle positioner synchronizer allows you to program the needle to stop reliably in either the UP or DOWN position. When pivoting the workpiece to change sewing directions, the needle parks in the DOWN position to hold the fabric securely in place without dropping a stitch. At the end of a seam, the needle automatically stops in the UP position, allowing for immediate material removal and effortless thread trimming.
8. Ergonomic 2-Stage Foot Pedal
The dedicated two-stage foot pedal enables fluid, hands-free operation. A light heel-tap automatically lifts the presser foot for easy material rotation, while pressing your heel all the way down lifts both the presser foot and the needle simultaneously—completely eliminating awkward hand adjustments mid-sew.

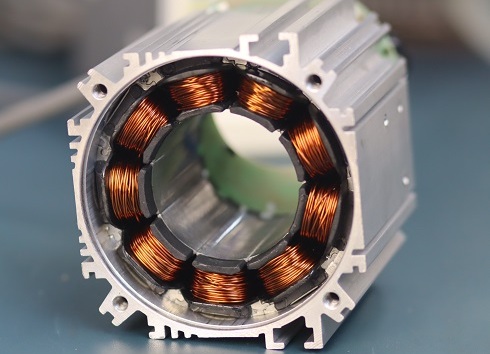

9. Premium Pure Copper Coils
Built for maximum durability, the Kinedyne servo motor utilizes 100% pure copper stator windings. This high-grade material maximizes electrical conductivity for smooth power delivery while providing exceptional heat resistance to prevent burnouts during prolonged, high-intensity operation.

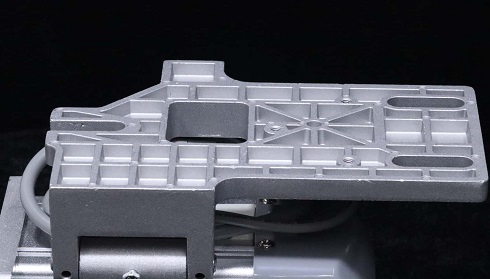

10. Reinforced Alloy Base (Maximum Stability)
Built from a thick, premium metal alloy, the heavy-duty mounting base easily handles the massive torque and horsepower generated by the motor. This rigid structural design eliminates flexing, providing an exceptionally stable, secure, and vibration-free foundation for your sewing machine setup.
11. Integrated Overheat Protection
This motor is equipped with an internal overheat protection controller that enables continuous, ultra-low-speed operation without thermal build-up. This advanced feature makes it ideal for extra-heavy-duty industrial sewing machines and large-scale manufacturing environments requiring 10 to 12 hours of continuous multi-shift operation daily.

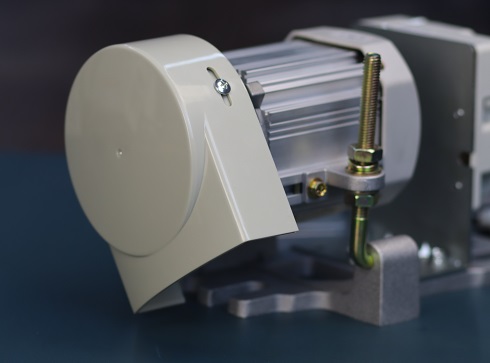

12. Full-Coverage Belt Guard
Designed with operator safety in mind, the integrated belt guard completely covers the motor pulley and belt system. This crucial safety feature eliminates accidental contact points, drastically minimizing the risk of workplace injuries.
Applications:
This durable, robust and extra strong servo motor is perfect for all types of heavy duty extra heavy duty leather sewing machines, such as Seiko SLH-2B, Juki TSC-441, Juki TNU-243, Durkopp Adler 204-370, Durkopp Adler 205-370, Seiko CH-2B, CH-6B,CH -7B,CH -8B,TH-6B, -TH8B, Durkopp Adler 969, Durkopp Adler 967,Juki LG-158,Seiko JW-28BL-30, Durkopp Adler 221,CONSEW 2050, CONSEW 754R, 756R, CONSEW 2040, CONSEW 733R, CONSEW 757R
Unique Features:
1. Soft Start/Slow Start Click here for video: a "soft start" for a servo motor on a leather sewing machine helps prevent issues with thread breakage or damage to the material at the beginning of the sewing process, essential for sewing complicated parts since the machine is far more manageable
2. Electronical needle positioning /"Jog-Dial" (Optional) Click here for video: simplify needle bar adjustments with a convenient electronical hand wheel, and this virtual flywheel is essential for long arm industrial sewing machines
3. Needle Positioner (Optional) Click here for video: this advanced needle positioner synchronizer allows you to stop needle in the down AND up position.
4. Automatic Back-tacking Click here for video: 750SL/750SH servo motors can be programmed to automatically sew a set number of back-tack stitches (reverse stitches) at the start and end of the seam.

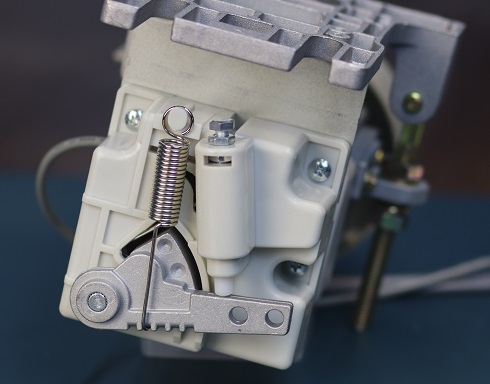

5. Speed Controller (Optional) Click here for video: allow you to adjust sewing speed in a second, essential for sewing thick leather and fine or delicate fabrics.
6. Half stitch Click here for video: This micro-adjustment button allows you literally move at a half-stitch at a time if you need to sew particularly carefully with of accuracy, stitch length, angles and where it is needed. Also understand as "electronic stitch compensation button"
