7591 Single-needle post-bed high-speed machine with
wheel feed, driven roller presser and automatic thread
trimmer for shoes, leather goods and car interior

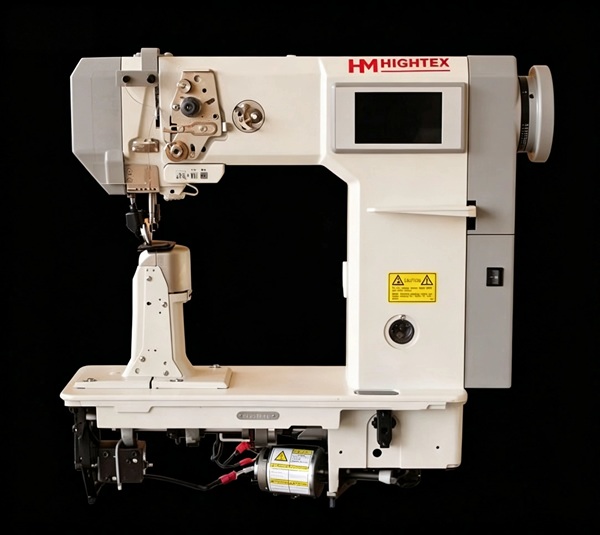

7591 post bed shoes sewing machine
7591 shoes stitching machine
Specialist for closeto- the-edge

7591 post bed shoe upper sewing machine
Convenient and efficient setting

Your advantages:

1. New high-class design for the shoe industry;

2. Energy-saving and environmentally-friendly;

3. 30% higher torque compared to usual drives;

4. Optimized kinematics with new part sets guarantee top sewing results;

5. Easily adjustable thread trimmer for short thread ends (up to 15/3 syn.);

6. Overload clutch for hook protection;

7. Easily and accurately adjustable needle guard;

8. A multi-function switch with pre-programmed functions is integrated in the sewing head;

9. Full automation: automatic thread trimmer, automatic presser foot lift, automatic reverse stitch (back tacking) and automatic needle UP/DOWN position;

10. Fine quality, better than any other similar shoes sewing machine made in China.


Suitable for ornamental stitches and assembly seams in the manufacturing of shoe uppers, leather bags, leather crafts, handbag, leather goods and upholstery/car interiors.


Max. Sewing Speed:

2500 rpm

Hook Type:

Standard rotary hook

Feeding system:

wheel feed + driven roller presser


550W Servo motor

Needle System:

DP*5 #11-14

Max. Thread size

15/3 syn.

Needle bar stroke:

38 mm

Bobbin size:

Outside Dia. 22mm, Height 10mm

Stitch length:

1.3 7 mm

Working area:


Presser Foot Lift:


Presser foot lift:

Pneumatic foot lifter

Package (head only):

390X730x880MM, G.W: 78KGS

Tariff code (HS code):
