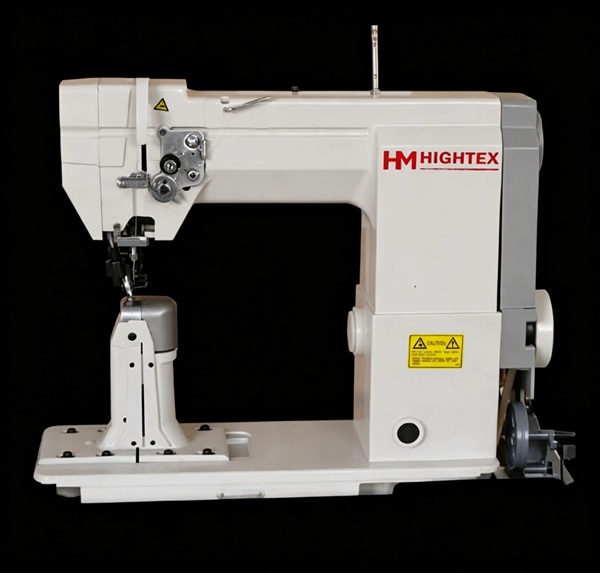

8810 shoe sewing machine
8810 shoe upper sewing maqchihe
Specialist for closeto- the-edge

8810 leather sewing machine

8810 shoe production sewing machine

78810 One needle postbed roller feed shoe sewing machine
78820 Two needle postbed roller feed shoe sewing machine

Your advantages:

1. It is old design but stands top quality. The feature of this machine is low cost and extremely reliable performance;

2. The versatile post bed design allows you to stitch hollow, tubular and shaped items which can not normally be done on standard flat bed sewing machines;

3. This machine has a driven top & bottom roller feed system which makes it easier to do fine and detailed stitching where many changes in stitch direction are required;

4. It can handle difficult to feed material including: vinyl, polyethylene plastics, oil cloth, canvas, coated and laminated fabrics;

5. Powered by a Kinedyne low-speed servo motor for precise stitch control, it allows you to sew at a slow, consistent speed—ideal for both beginners and intricate artisan work.

Applications:

Suitable for ornamental stitches and assembly seams in the manufacturing of shoe uppers, leather bags, boot tops, leather crafts, handbag, leather goods and upholstery/car interiors.


Specifications:

Max. Sewing Speed:

2000 rpm

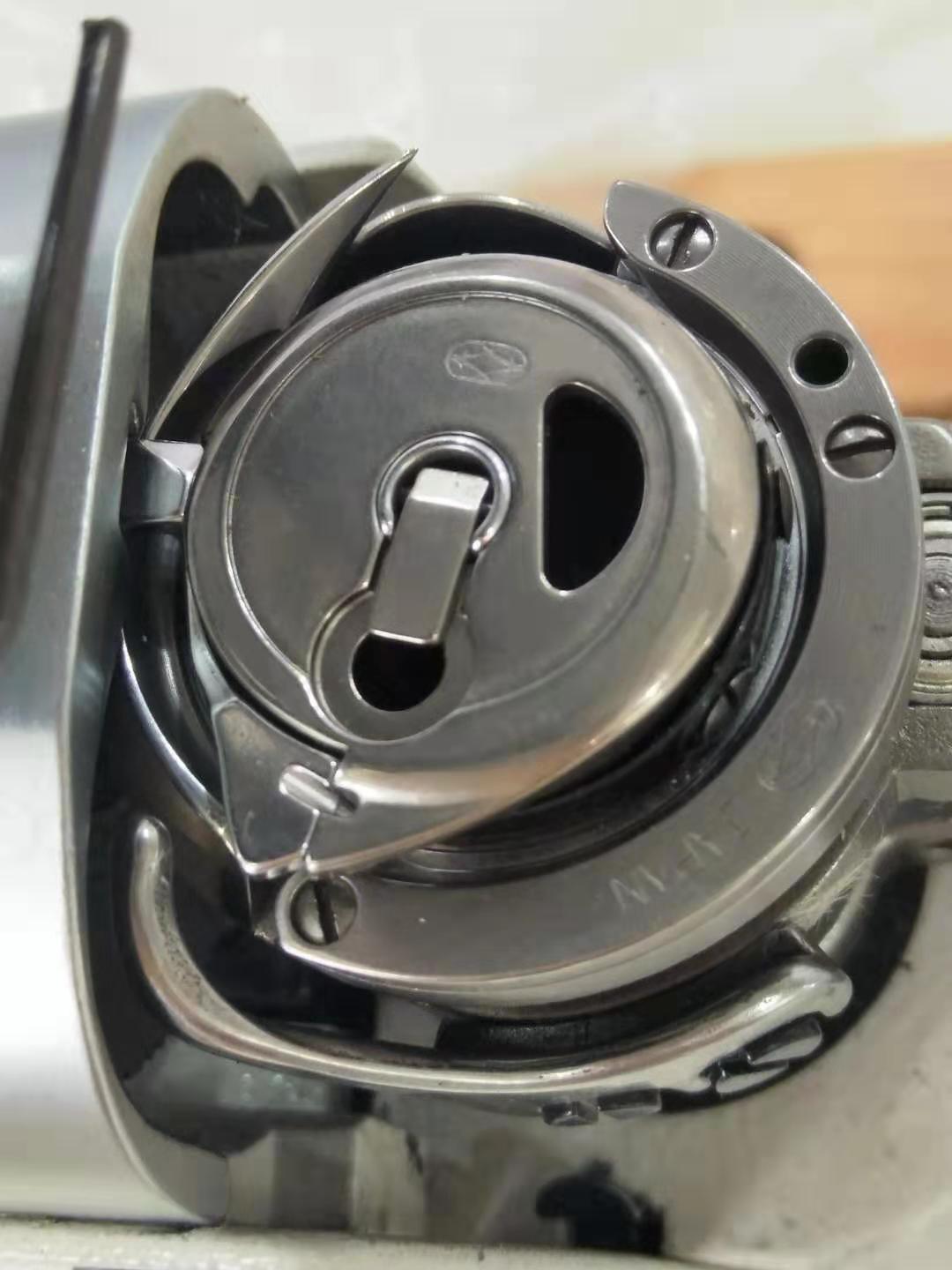

Hook Type:

Top loading Pfaff style

Feeding system:

wheel feed + driven roller presser

Motor:

550W Servo motor

Needle System:

135x8 (134LR) #10-#23

Thread size

#33 to #138

Needle gauge set (78820):

2.4mm, 2.0mm, 1.6mm

Max Sew Thickness:

6mm

Needle bar stroke:

41 mm

Bobbin size:

Outside Dia. 22mm, Height 10mm

Max. stitch length:

7 mm (78810), 4mm (78820)

Working area:

254X178mm

Presser Foot Lift:

14mm

Presser foot lift:

Manually

Package (head only):

745X295x640MM, G.W: 55KGS

Tariff code (HS code):

8452290000
