HR-4A

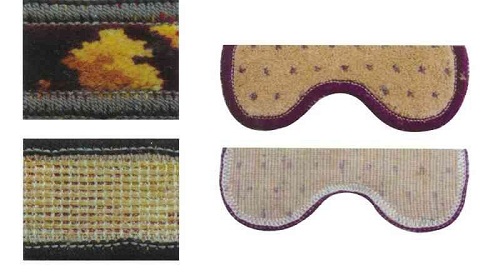

HR-4A/4B Carpet overedging sewing machine

Single needle, plain feed, flat Bed, three thread overseaming stitch Machine for overedging carpets, rugs, etc (HR-4A). Model HR-4B is designed for two thread overseaming stitch. Curved line sewing and small circles are available by HR-4AC and HR-4BC. Extra heavy duty machine designed especially for overedging very thick carpets with wide overseam width upto 12mm; With strong servo motor (Powerful + Quiet + Accurate Speed Control, different from so call “Energy Saving Servo Motor”or “Power Saving Servo Motor” in the market.

This machine can replace NEWLONG HR-4A, HR-4B and Union Special 81200C.

Specifications

Max. Speed

Sewing capacity

Stitch Range

Sewing thickness

Thread Number

HR-4A

1400 rpm

12mm

3.5-7mm

14mm

Triple

HR-4B

1400 rpm

10mm

3.5-7mm

12mm

Double


9204ZZ

204ZZ-CR Heavy duty extra wide zigzag sewing machine for joining carpets, mats and rugs together

This industrial sewing machine is designed for joining two piece of carpet/mats/rugs together by stitching (different from HR-4A and HR-4B for overedging carpets). Extreme wide zigzag width (16mm) allows to join carpets with wide border (stonger seam); Powerful walking foot mechanism insures the smooth feeding of carpet (even for elastic carpet ); Extra large shuttle hook and bobbin capacity offer high efficiency.

Applications: joining two pieces of carpets, mats and rugs together by zigzag stitch or overedging thick carpets, mats, wool blankets, cotton rugs, braided rugs, isolation blanket.

Click here for video

Specifications

Max. Speed

Presser lift

Stitch length

Zigzag width

Needle System

Working area

9204ZZ-CR

800 rpm

15mm

10mm

16mm

794 # 140 – 250

320*185mm
