Union Special 80800C Sewing Head

80800C high speed, manual feed, plain sewing head used to close heavy duty small and large bags

The class 80800 sewing heads are used in conjunction with a line of bag closing columns and offer a complete choice of high production equipment that will meet your needs today and into the future.

The 80800C is a plain closure, standard style head, which is used when all bags are the same size and a manual height adjustment column is sufficient. The 80800C will sew paper, synthentic and natural fiber bags up to 32 plies with 3 to 4 stitches per inch (3-1/2 is standard) and a maximum speed of 1800 stitches per minute. It is used for closing small and large filled bags of burlap, jute, cotton, paper and plastic or woven polypropylene materials.

Specifications

Max. Speed

Presser lift

Stitch length

Needle system

Thread chain cutter

80800C

1800 rpm

22mm

6.5-13 mm

9848G250/100

continuously driven nibbler knives


Newlong DN-2HS bag sewing machine

DN2HS Single Needle Machine, Plain Feed, Flat Bed, Double Thread Chain Stitch for Seaming and Hemming Light to Heavy Materials (Multi-Wall Paper, Polypropylene & Jute)

This is the ideal choice to sew bags and geo textiles by hand or in an automated system. Unique features: has an oil bath, left and right version available. Optional availability like needle cooler, double stitch or single thread setup possible.

All parts same to NEWLONG DN-2HS.

Specifications

Max. Speed

Presser lift

Stitch length

Needle system

Seam type

DN-2HS

2800 rpm

10mm

14mm

UY143GS 200

Double Thread Chain Stitch


Newlong DN-2LHS left bag sewing head

DN-2LHS Left bag sewing head for Seaming and Hemming Light to Heavy Materials (Multi-Wall Paper, Polypropylene & Jute)

This is the ideal choice to sew bags and geo textiles by hand or in an automated system. Unique features: has an oil bath, left and right version available. Optional availability like needle cooler, double stitch or single thread setup possible.

All parts same to Newlong DN-2LHS left bag sewing head.

Specifications

Max. Speed

Presser lift

Stitch length

Needle system

Seam type

DN-2LHS

2800 rpm

10mm

14mm

UY143GS 200

Double Thread Chain Stitch

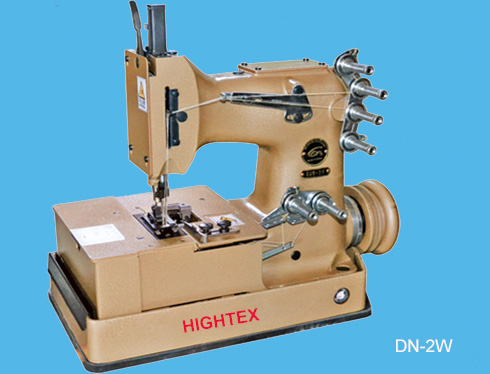

Newlong DN-2W Bag sewing machine

DN-2W Two Needle, Plain Feed, Flat bed, Four Thread Chain Stitch Machine for seaming and hemming of light to heavy weight fabric such as PP/PE woven cloth or jute bags

This model is a variation of model DN-2HS, and effects a twin seam with two each of needles and loopers. Recommended when strong seam is required. Can be used as a single needle machine by simply removing one needle or the other.

All parts same to NEWLONG DN-2W.

Specifications

Max. Speed

Presser lift

Stitch length

Needle system

Seam type

DN-2W

2800 rpm

10mm

14mm

UY143GS 200

Four Thread Chain Stitch

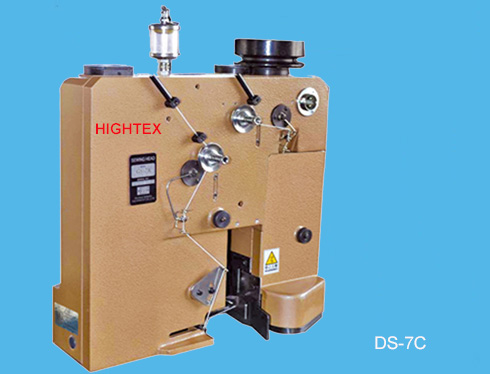

Newlong DS-7C  Filled Bag Closing Head Machine

DS-7C Series Filled Bag Closing Head Machine

Automatic wing needle, bag closing head machine specially designed to operate as an integrated part of a sealing system such as the NEWLONG KS sealers.
This unique filled bag closer machine features continuous motion feeding.
Timed needle moves in epicyclical rotations as the bag passes through the filled bag sewing machine.
Power driven feed rollers ensure accurate feeding of the bag and avoid damage to the bag top sometimes caused by a feed dog.
Upon exit of the bag, a built-in air cylinder driven guillotine style cutter will automatically cut the thread and crepe tape.

This machine can replace Newlong DS-7C Filled Bag Closing Head Machine.

Specifications

Max. Speed

Cutter Type

Stitch Range

Needle system

Lubrication System

DS-7C

1400 rpm

Pneumatic

7-10.5mm

DRx2 #25

Manual

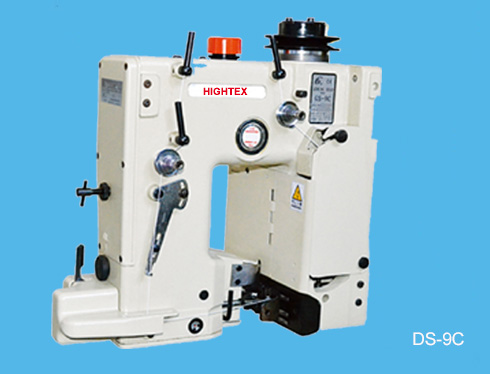

Newlong DS-9C filled bag sewing machine

DS-9C High Speed Bag Closing Machine head with Variable Diameter Pulley and Air Operated Cutter (Single Needle, Double Thread Chain Stitch Machine)

Single and Double Needle(s) High Speed Bag Closing / Bag Stitcher Suitable for closing bag materials such as : Paper, Polypropylene (PP) . Enclosed in a self-oil bath lubrication system. This Oil bath protects parts from rusting ensuring higher productivity and a recution in maintenance costs.
Single-needle Two-thread double locked chainstitch machine for Plain & Tape Bound Closing, Is equipped with air cylinder driven guillotine cutter for thread / crepe tape. (Air Pressure: 0.4Mpa / Crepe Tape Width: Standard 55mm, other widths available)

This machine can replace Newlong DS-9C filled bag sewing machine.



Specifications

Max. Speed

Max.Sewing Thickness

Stitch Range

Needle system

Stitch type

DS-9C

2500 rpm

Paper bag 6P with a tuck

7-10.5mm

DR-H30 #26

401

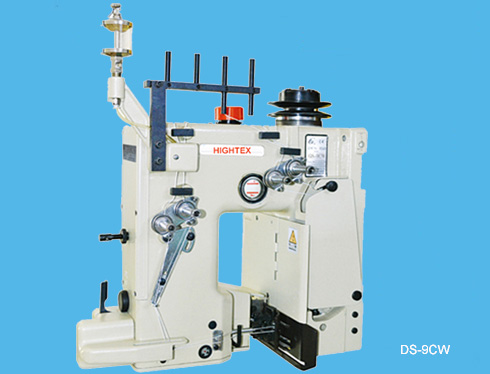

Newlong DS-9CW two needle sewing head

DS-9CW High Speed, Self Lubricated, Low Maintenance Bag Closer / Bag Stitcher

Single and Double Needle(s) High Speed Bag Closing / Bag Stitcher Suitable for closing bag materials such as : Paper, Polypropylene (PP) . Enclosed in a self-oil bath lubrication system. This Oil bath protects parts from rusting ensuring higher productivity and a recution in maintenance costs.
Double-needle four-thread double locked chainstitch machine for Plain & Tape Bound Closing, Is equipped with air cylinder driven guillotine cutter for thread / crepe tape. (Air Pressure: 0.4Mpa / Crepe Tape Width: Standard 55mm, other width available.

This machine can replace Newlong DS-9CW two needle sewing head and Union Special 80200A.



Specifications

Max. Speed

Max.Sewing Thickness

Stitch Range

Needle system

Stitch type

DS-9CW

2500 rpm

Paper bag 6P with a tuck

7-10.5mm

DR-H30 #26

401

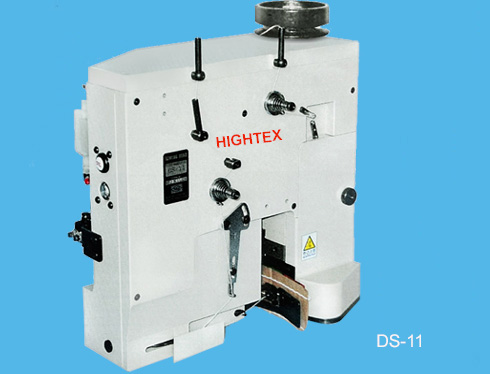

Newlong DS-11 Bag Closing Sewing Head

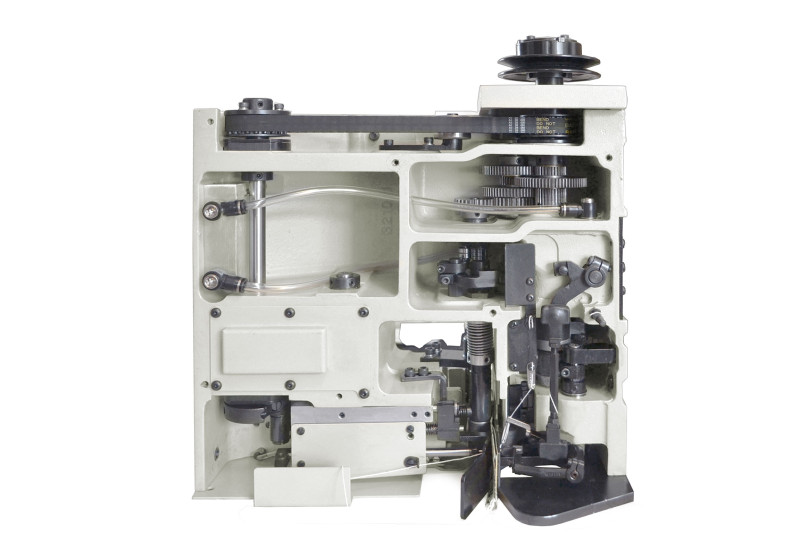

DS-11 sewing machine head

DS-11 Bag Closing Sewing Head

The DS-11 the ultimate Bag Closing Machine is excellent choice when working with Multiwall Paper Bags. This machine is simular to the Doboy D-95 sewing machine but has enhanced features such as a lubricated Oil Bath. A Special designed single needle double thread chain stitch bag closing machine head with continuous motion feeding system for integration in a heat sealing setup. Equipped with pneumatic guillotine type crepe tape cutter.

Equivelant to Newlong DS-11
Unique Swinging Needle system
Lubricated Oil Bath (run up to 2000 rpm)
Easy replacing of the main belt
Continues motion feeding system (upper and lower feed rollers)
Pneumatic Guilletine Crepe tape cutter.

Specifications

Max. Speed

Max.Sewing Thickness

Stitch Range

Needle system

Stitch type

DS-11

2000 rpm

Paper bag 3P with a tuck

10.2m

DN-H29 #26

401

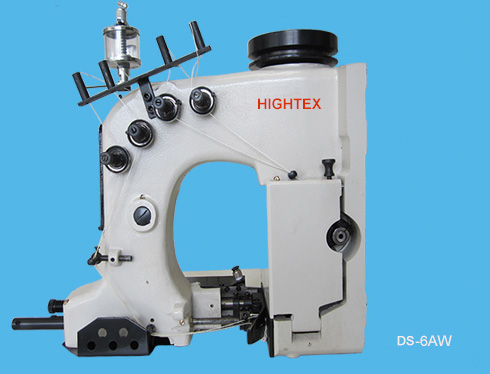

Double Needle, Four Thread Chain Stitch Sewing Machine

DS-6AW Automatic Double Needle Bag Closer Sewing Machine

DS-6AW Series bag sewing machine head is special designed for closing bags filled with flour, grain, fertilizer, feed, chemicals, seed, coffee, sugar, salt, dog food, minerals, and hundreds of other products. Working with a column and belt conveyor, it can accomplish packing operation efficiently.

Specifications

Max. Speed

Max. sewing thickness

Stitch Range

Needle system

Thread chain cutter

DS-6AW

1900 rpm

8mm

6.5-11mm

80800◊200-250#

Electro-pneumatic

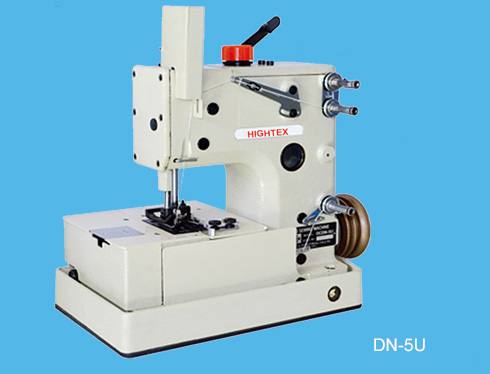

Newlong DN-5U Bag Making Sewing Machine

DN-5U Bag Making Sewing Machine

DS-6AW Series bag sewing machine head is special designed for closing bags filled with flour, grain, fertilizer, feed, chemicals, seed, coffee, sugar, salt, dog food, minerals, and hundreds of other products. Working with a column and belt conveyor, it can accomplish packing operation efficiently.

This machine is interchangeable with Newlong DN-5U Bag Making Sewing Machine.

Specifications

Max. Speed

Sewing material

Stitch Range

Needle system

Thread chain cutter

DN-5U

2800 rpm

Paper, PP

7-12mm

DRx2 #250

Electro-pneumatic

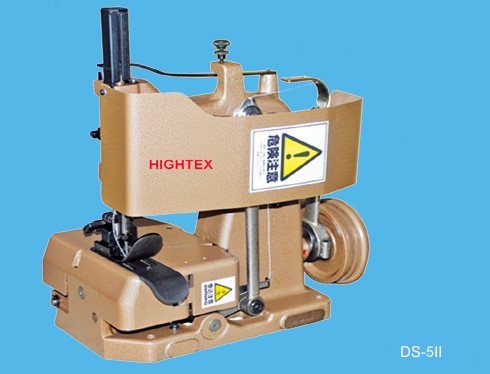

Newlong DS-5II double chain stitch

DS-5II Double chain stitch

With small heads come small prices. The Hightex DS-5II is a double chain stitch (401) entry level Pedestal mounted sewing head. It is a flexible yet simple solution for a diversity of jobs. Easy to maintain due to itís open structure. Ideal for small flexible productions and simple setup installations by foot pedal. The machine head is also easy mounted on a table to make double chain stitch bags or (FIBC) Big Bags. It is the most affordable pedestal mounted machine head within our range of sewing heads.

This machine is interchangeable with Newlong DS-5II double chain stitch.

Specifications

Max. Speed

Sewing thickness

Stitch Range

Needle system

Thread chain cutter

DS-5II

800 rpm

Jute bag, 8mm

7-12mm

DR-H30 #26

Double thread chain stitch


Newlong AS-B2L A6-B2L

AS-B2L A6-B2L FILLED BAG CLOSING MACHINE

A VARIETY MODELS AVAILABLE TO COPE WITH EVERY BAGGING REQUIREMENTS

The series of model represent bag closing machines for various products e.g. foodstuff, fertilizer, feed, & chemicals, packed in paper, jute woven-cloth & polyethylene bags. Capable of handling 500 - 600 bags/hour capacity with automatic and simple operation. Right model suitable for working condition can be selected from a wide range of different models.
