Since 2010 we have been involved in the production of HIGHTEX heat-sealing equipment for industrial fabrics, such as inflatable products and inflatable products, awnings and shades to truck tarp curtains, tents, banners and billboards, ducting / ventilation, geo liners and filtration products.

  Heavy duty cylinder bed sewing machines

dot  Heavy duty thick thread flat sewing machine

dot FIBC bulk bags making machines

dot  Heavy duty zigzag sail making machines

dot  Long arm heavy duty sewing machines

dot  Heavy post bed thick thread sewing machine

dot  Heavy duty automatic pattern sewing machine

dot  Cutting machines for slings/ropes and leather

dot  Spare parts and special sewing accessories

dot  Hot air welding machine & ultrasonic welder

dot  Custom sewing units and sewing automation

dot  Turnkey sewing solution for heavy industries


S350

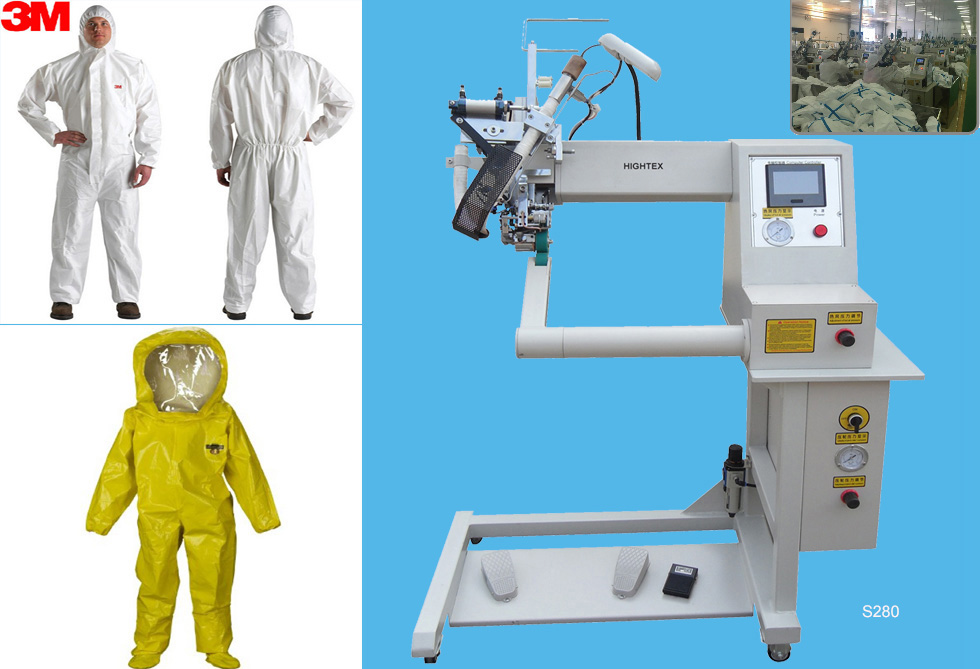

S280 Hot-air seam sealing machines

The first S280 series seam sealing machines were delivered to manufacturers in 2008 and this was the start of a success story. The on-going commitment to new development is illustrated by the new S280, where the valuable feedback received from existing HIGHTEX machine users throughout the world has been converted into machine reality.

All necessary data that needs in machine operation can be input from the touch panel.
Password operation become possible, machine operation data protects from unauthorized access.
Each upper and lower roller are driven individual motor, differential drive ratio eliminates puckering / creasing problem.
Self-diagnostic fault finding system is created, faults identified on LCD screen with suggested solutions.
Nozzle mount and movement is modified, nozzle can be positioned very accurately.
Full functional control for roller reverse turn, prevents seal skipping.

Applications: for sealing seams with tape for various proof purpose such as water, gas, dust etc., including rain coats, wind coats, awnings, fireman uniform, outerwear, underwear, sportswear, rucksacks, footwear, shoes, clothing for military and public authorities, backpack, balloons, car components, inflatable, boats, Balloons, protective wear, clean room garments, tents medical industry and filter bags. As well as seam preparation for foam padded automobile seats, sofas, luggage, head- and side rests.


S350

S300 Hot-air seam sealing machines for continuous seam welding

The concept has been to create a machine that is “User friendly” – a unit that is easy to understand, adjust and operate whilst maintaining the excellent reputation for reliability. We are confident that the new S300 machine meets these criteria and that the new technology will provide users with significant advantages.
Extreme durability due to the imported electronic control system (Made in Japan);
Password operation become possible, machine operation data protects from unauthorized access.
Each upper and lower roller are driven individual motor, differential drive ratio eliminates puckering / creasing problem.
The pressure of upper cylinder is adjustable according to different thickness of material.
Self-diagnostic fault finding system is created, faults identified on LCD screen with suggested solutions.
Nozzle mount and movement is modified, nozzle can be positioned very accurately.
Full functional control for roller reverse turn, prevents seal skipping.
Automatic cooling system

Applications: for sealing seams with tape for various proof purpose such as water, gas, dust etc., including rain coats, wind coats, awnings, fireman uniform, outerwear, underwear, sportswear, rucksacks, footwear, shoes, clothing for military and public authorities, backpack, balloons, car components, inflatable, boats, Balloons, protective wear, clean room garments, tents medical industry and filter bags. As well as seam preparation for foam padded automobile seats, sofas, luggage, head- and side rests.


S350

S350 hot-air tape welding machine

The S350 series seam sealer is specially designed to provide ease of operation, consistency and quality complete with a range of optional modular attachments to meet today's requirements for more flexible equipment.

The simple to use and comprehensive control system includes a digital dual display temperature controller. The dual display temperature controller has an accuracy of ±1% and interacts with the machine's PLC to ensure the heater is at the set temperature. If the correct temperature has not been reached the machine is disabled. The angled post with low profile scissor ensure increased visibility for the operator. Adjustable delay timers and drive stop can be set to eliminate “Skipping” during starting and stopping while sealing long seams.

Extreme durability due to the imported electronic control system (Made in Japan);
Password operation become possible, machine operation data protects from unauthorized access.
Each upper and lower roller are driven individual motor, differential drive ratio eliminates puckering / creasing problem.
The pressure of upper cylinder is adjustable according to different thickness of material.
Self-diagnostic fault finding system is created, faults identified on LCD screen with suggested solutions.
Nozzle mount and movement is modified, nozzle can be positioned very accurately.
Full functional control for roller reverse turn, prevents seal skipping.
Automatic cooling system.

Applications: for sealing seams with tape for various proof purpose such as water, gas, dust etc., including rain coats, wind coats, awnings, fireman uniform, outerwear, underwear, sportswear, rucksacks, footwear, shoes, clothing for military and public authorities, backpack, balloons, car components, inflatable, boats, Balloons, protective wear, clean room garments, tents medical industry and filter bags. As well as seam preparation for foam padded automobile seats, sofas, luggage, head- and side rests.

Click here for video

S350

S400 Ultrasonic sealing machine with rolling sonotrode

The S400 is used specifically in thread less technology. Provides totally watertight seams. Uses a quiet but powerful 35KHZ generator. Fully certified and CE marked against hearing damage from ultrasonic generator noise. There is a microprocessor control with a HMI screen operator interface. The design and function of the machine provides excellent control in the constructions of curved seams and is operated just like a standard sewing machine. Capable of handling all types of materials with synthetic content, stretch materials, laminated and coated materials, fleece and soft shell fabrics, non wovens, cotton blends etc.
Seams are less bulky.
Uses minimal seam allowances creating flatter seams.
Improves comfort levels on next to skin garments.
Cleaner cosmetic appearance.

Applications: underwear, sportswear, medical gowns, outerwear, rucksacks, bags, nylon-pvc and nylon-pu, oxford cloth and rubber cloth rain coats, jackets, wind coats, snow-suits, ski wears, nylon tents, military water-proof coverings and bags, light vehicle coverings, car coverings, etc.

Click here for video

S350

S600 Hot-air welding machine for high-end manufacturers

The S600 is the most efficient and energy saving hot air welding machine on the market today. Our adjustable energy saving function kicks in when the machine has been lying idle eliminating wastage of precious resources. The low air consumption of 3 C.F.M of which most is used through the heater means that the power consumption is also kept to a minimum.

Engineering reliable and easy maintenance machines is key to our success. Ensuring that our equipment has very little down time and that problem solving is never over complicated that's why you will not find unnecessary electronics and software in our machines which can heighten the risk of failure and expensive parts replacements.

This clever function allows the operator to slow the machine down on heavy materials such as 3-layer fabrics where the cross over seams need more pressure and heat. Normally in production the garment would be removed after tape sealing and re-stamped on another machine in these areas where seam tape is prone to lifting. By using this feature this additional operation is removed from the manufacturing process.

Applications: for sealing seams with tape for various proof purpose such as water, gas, dust etc., including rain coats, wind coats, awnings, fireman uniform, outerwear, underwear, sportswear, rucksacks, footwear, shoes, clothing for military and public authorities, backpack, balloons, car components, inflatable, boats, Balloons, protective wear, clean room garments, tents medical industry and filter bags. As well as seam preparation for foam padded automobile seats, sofas, luggage, head- and side rests.


350

S700 Hot air inflatable welding machine
S700T Hot air welding machine for tents (with puller)
S700X Hot air and hot wedge welding machine for four panel tent construction
S700W Two separate drive motors for the top and bottom feed roller guarantee an optimum adaptation to the welding

S700 Hot air welding machine is rotary hot air and hot wedge sealing machine to join thermoplastic fabrics and industrial fabrics using very precise heat speed and pressure settings. For example PVC laminated fabrics, Vinyl coated fabrics, Vinyl Films and Polyurethane (PU) coated fabrics, Polyurethane films, Polypropylene-coated fabrics, Polyethylene (PE), Thermoplastic rubber fabrics, acrylics and others.

Your advantages:
1.Extreme durability due to the imported electronic control system (Made in Japan);
2.The large clearance room under the arm is very useful when welding larger items, for example: inflatable boat and tarpaulins;
3.The top and bottom weld rollers are independently controlled which helps produce and expanded range of products and materials;
4.Automatic temperature tracking system ensures the precision of welding temperature(±1℃);
5. Different welding mould, fabric guide, special attachments and Heat Sink are available to weld hems, hem with pockets, overlap, hem with hot air, hem with hot wedge, hem with rope, butt seal with tape;
6. Switchable arm: the curve arm manages curves and unique shapes for applications like inflatable boats and inflatable kayaks. The flat bed table is for straight seams for applications like tarps, awnings and tents;
7. Service and support are important considerations in your selection of a hot-air welding machine. We understand how critical it is that your equipment work correctly.

Applications: Inflatable products manufacturing like Inflatable boats, inflatable kayaks, bouncers, inflatables water games, slides, castles and other curved products Awning and marine cover applications Tents, tarpaulins, other various products Signs, finishing banners with hems & pockets and other advertising inflatable.

Click here for video

S700

S701 Hot air welding machine for inflatable boats

HIGHTEX #S701 Inflatable hot air welding machine is cylinder bed hot-air seam sealing machine to join thermoplastic fabrics such as PVC,TPU / PU, PE, PP and various other technical fabrics.

This hot hair welding machine is modified by model S700, special for welding head of inflatable boats. The versatile cylinder bed design is very useful when welding shaped items or curves panels etc.

Service and support are important considerations in your selection of a hot-air welding machine. We understand how critical it is that your equipment work correctly.

This hot air welding machine is ideal for the fabrication of inflatable boats, rubber boats, outdoor awnings, trampolines, tarpaulins, luggage and suitcase, Air Balloon, tents, banners and billboards, ducting / ventilation, geo liners, filtration products, military tents and other military products.
